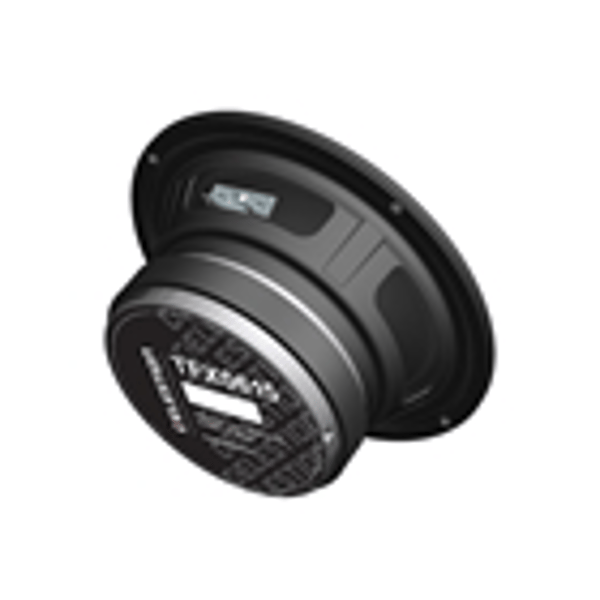

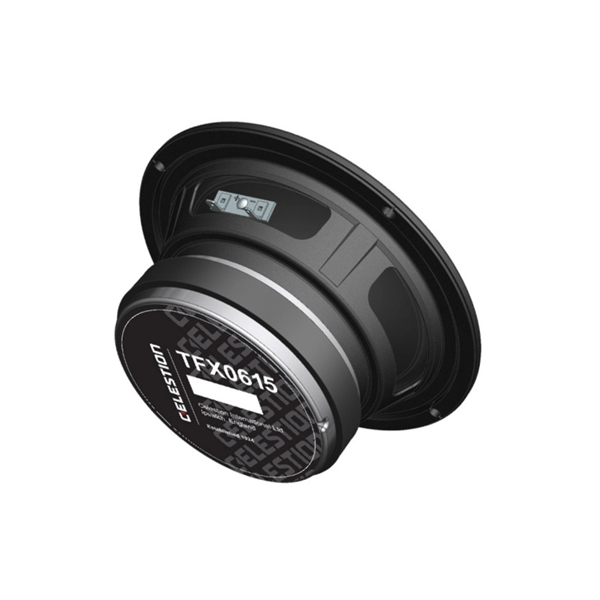

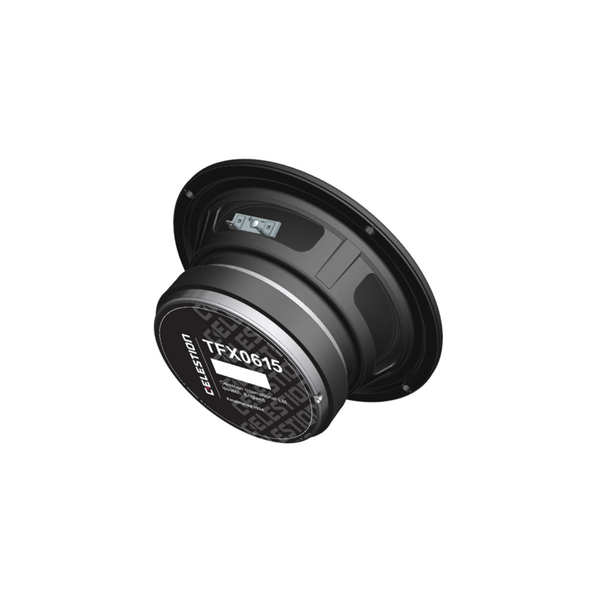

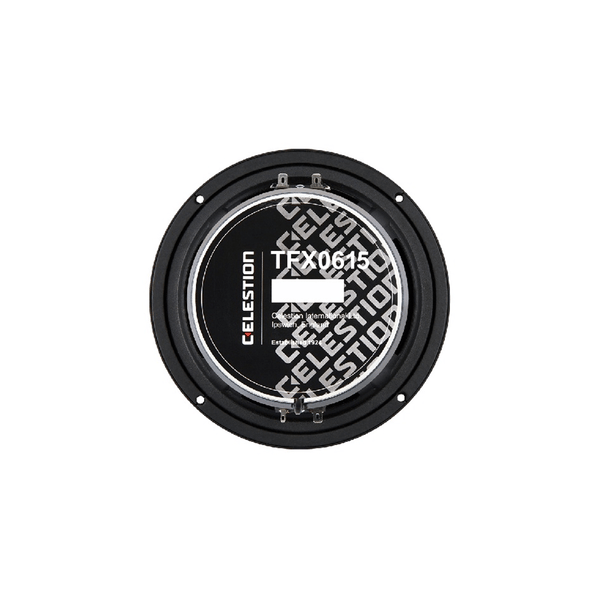

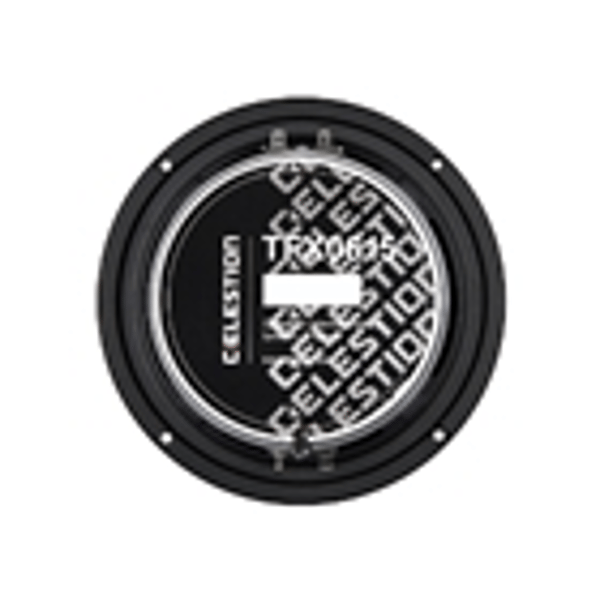

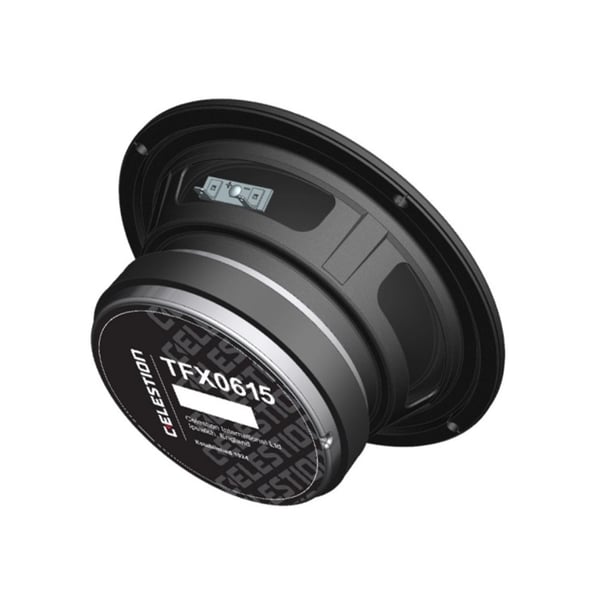

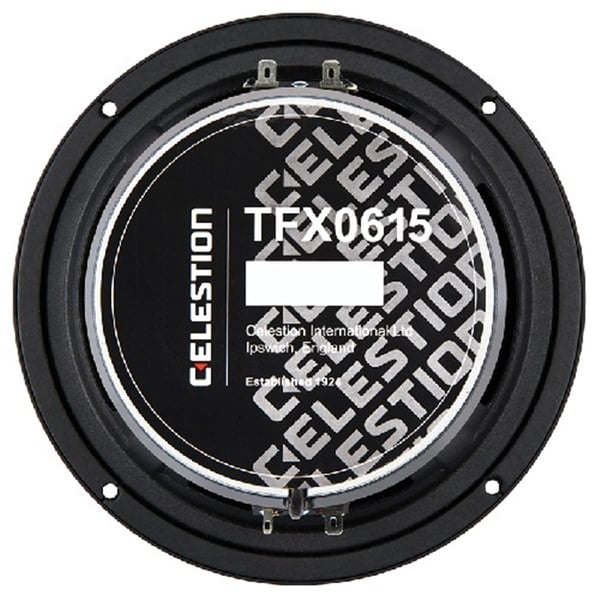

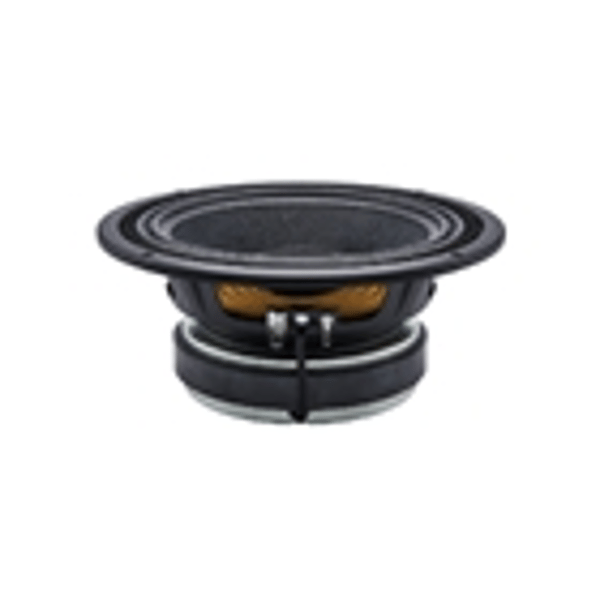

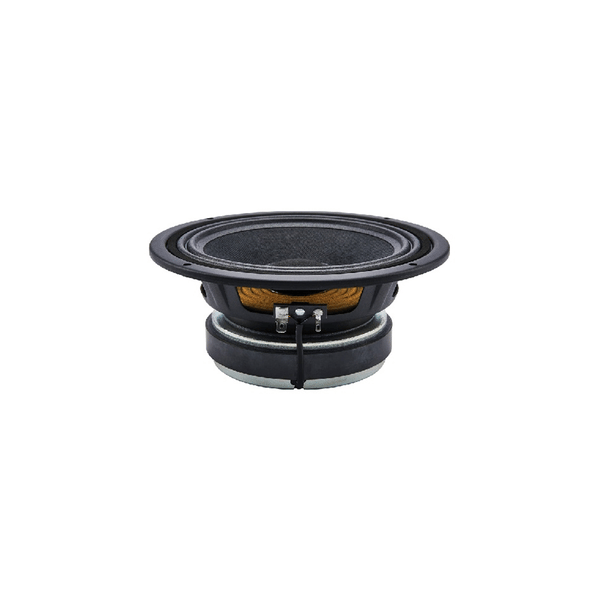

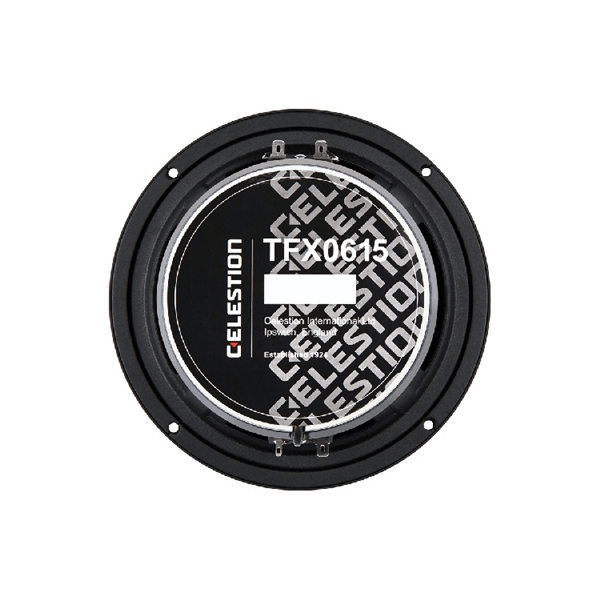

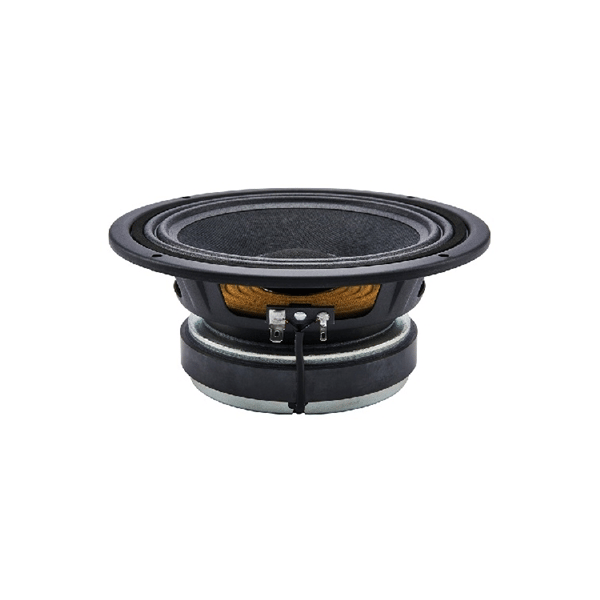

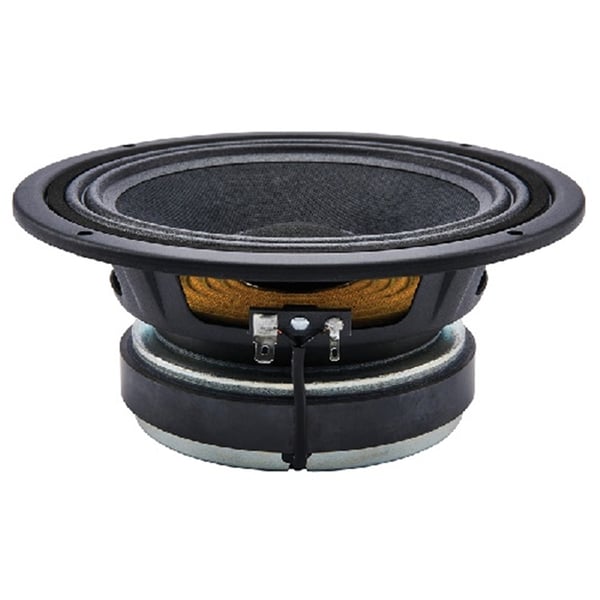

Celestion TFX0615 150W 8ohm Coaxial

Celestion - TFX0615 150W 8ohm - Coaxial

Altoparlante coassiale da 6" con chassis in acciaio stampato, magnete in ferrite, bobina da 1.5", potenza 150Watt, impedenza 8ohm

Caratteristiche

-Silk dome tweeter

-Integrated HF waveguide

-110° nominal HF coverage

Specifiche Generali

Size: 165mm/6.5in

Power rating(1): 150Wrms

Continuous power rating(2): 300W

Nominal impedance: 8ohm

Sensitivity(3): 94dB

Frequency range: 100-6,000Hz

Voice coil diameter: 38mm/1.5in

Chassis type: Pressed steel

Magnet type: Ferrite

Magnet weight: 0.81kg/23oz

Coil material: Round copper

Former material: Polyimide

Cone material: Kevlar loaded paper

Surround material: Cloth-sealed

Suspension: Single

Xmax: 3.75mm/0.15in

Gap depth: 6mm/0.24in

Voice coil winding width: 13.5mm/0.53in

Parametri di Thiele-Small

D: 140mm/5.51in

Fs: 96.8Hz

Mms: 12.62g/0.45oz

Qms: 3.038

Qes: 0.429

Qts: 0.376

Re: 5.39ohm

Vas: 7.18l/0.25ft3

BI: 9.82Tm

Cms: 0.21mm/N

Rms: 2.53kg/s

Le (at 1kHz): 0.46mH

Specifiche Generali HF

Power rating(1): 10Wrms

Continuous power rating(5): 20W

Nominal impedance: 8ohm

Sensitivity: 98dB

Frequency range: 1,700-20,000Hz

Recommended min. crossover (12dB/oct): 2,200Hz

Voice coil diameter: 25mm/1in

Magnet type: Neodymium

Diaphragm and surround material: Silk

Informazioni di Montaggio

Diameter: 178mm/7in(max)

Overall depth: 75.5mm/3in

Cut-out diameter: 145mm/5.7in

Number of mounting slots: 4

Mounting PCD range: 168.5mm/6.63in

Unit weight: 2.1kg/4.6lb

Note

(1)Tested for two hours using a continuous, band-limited pink noise signal as per AES standard.

Power calculated on minimum impedance. Loudspeaker tested in free air.

(2)Continuous Power Rating is defined as 3dB greater than the AES rating

(3)Measured on axis at 1W, 1m in 2pi anechoic environment.

(4)Xmax derived from: (voice coil winding width-gap depth)/2.

(5)Continuous Power Handling is defined as 3dB greater than the AES rating
