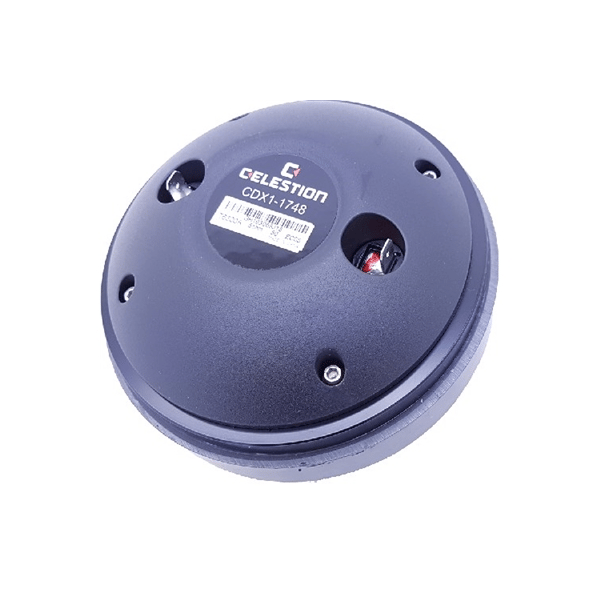

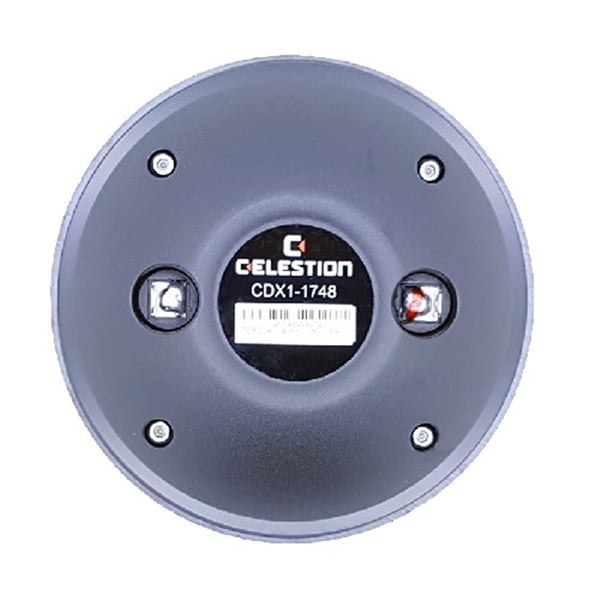

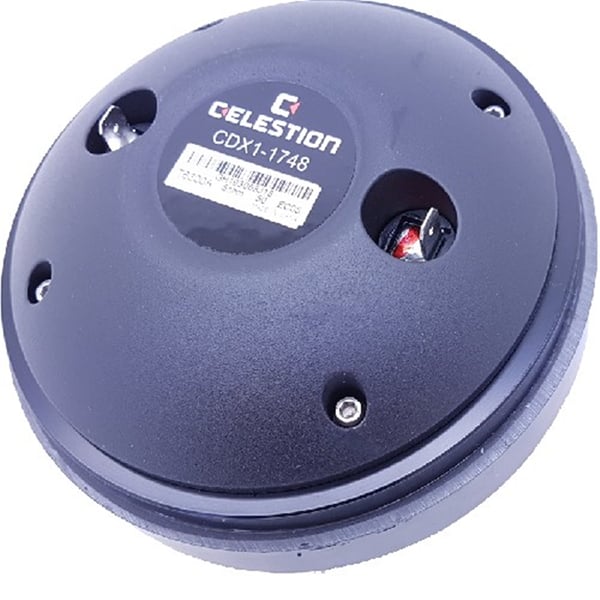

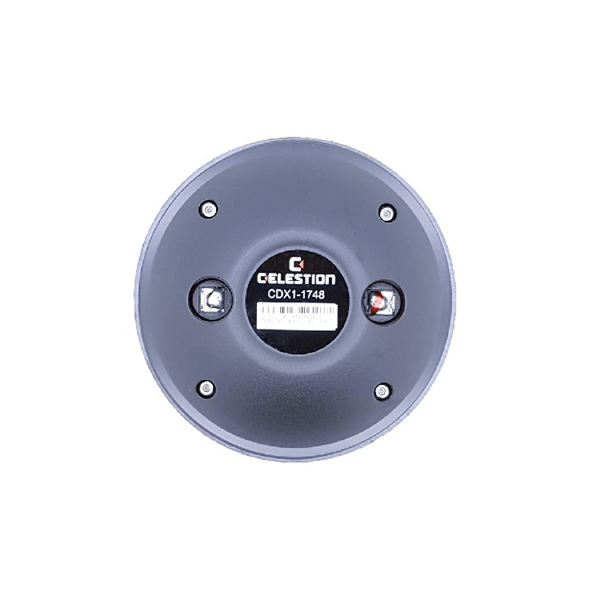

Celestion CDX1-1748 60W 8ohm HF Ferrite

Celestion - CDX1-1748 60W 8ohm - HF Compression Driver - Ferrite

Driver a compressione con magnete in ferrite, uscita da 1", potenza 60Watt, impedenza 8ohm,

diaframma in polymide (poliimmide), fissaggio ad avvitare (screw).

Caratteristiche

- 1" exit, ferrite magnet compression driver with 1.75" edgewound copper clad aluminium voice coil

- 60Wrms power handling (AES standard) and 110dB sensitivity

- Next generation Sound Castle™ soft clamping assembly reduces diaphragm stress for reduced distortion and even greater reliability of performance

- One piece Polyimide diaphragm and surround

- Finite Element Analysis (FEA) used to optimise both magnet assembly and acoustic design

- Screw fitting, same performance and reliability as the CDX1-1747 with an industry-standard 35mm screw fitting

Specifiche Generali

Power rating(1): 60Wrms

Continuous power rating(2): 120W

Nominal impedance: 8ohm

Frequency range: 1000-20,000Hz

Sensitivity(3): 110dB

Recommended min. crossover (12dB/oct): 2000Hz

Voice coil diameter: 44mm/1.75in

Voice coil material: Edgewound Copper Clad Aluminium

Magnet type: Ferrite

Diaphragm material: Polyimide

Surround material: Polyimide

Informazioni di Montaggio

Width: 120mm/4.72in

Depth: 56mm/2.2in

Weight: 2.3kg/5.1lb

Fitting: Screw (35mm, 1.38in dia)

Throat exit: 25mm/1in

Trombe Compatibili

H1SC-9040, H1SC-8050

Note

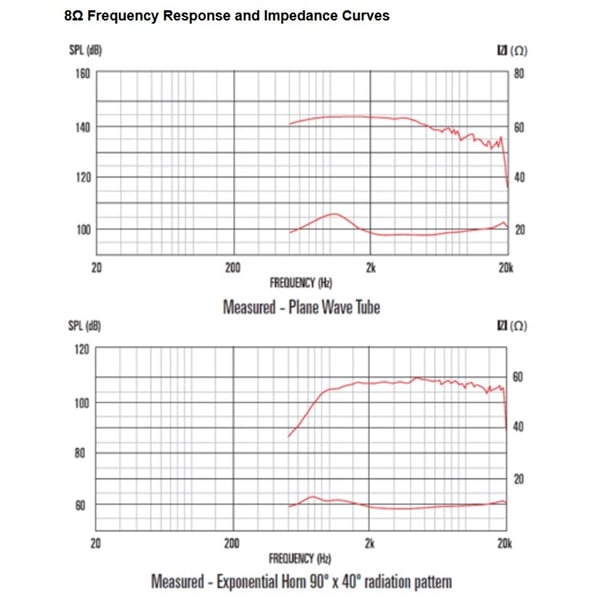

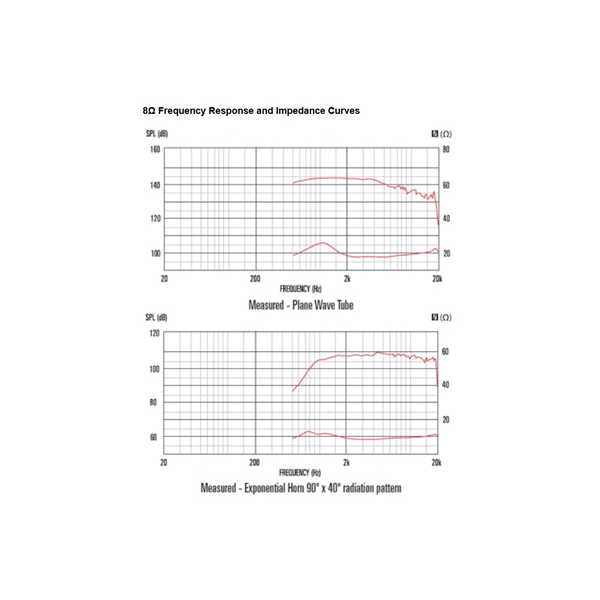

(1)Tested for two hours on plane wave tube using a continuous, band-limited pink noise signal as per AES standard. Power calculated on minimum impedance.

(2)Continuous Power Handling is defined as 3dB greater than the AES rating.

(3)Measured on axis at 1W, 1m, using typical horn, in 2pi anechoic environment.
