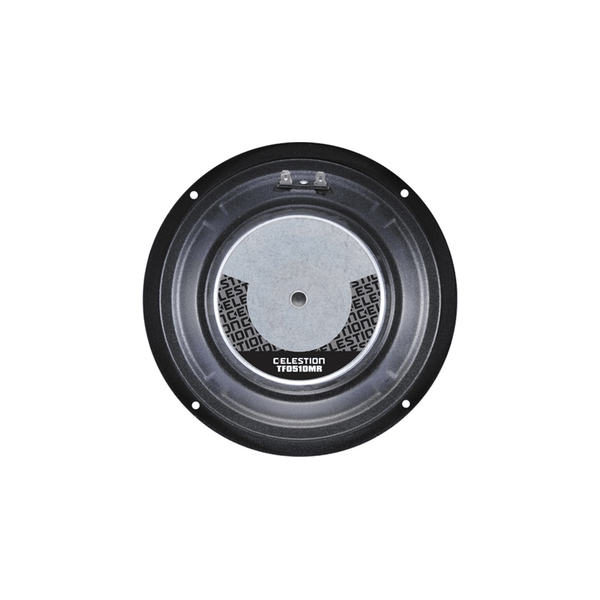

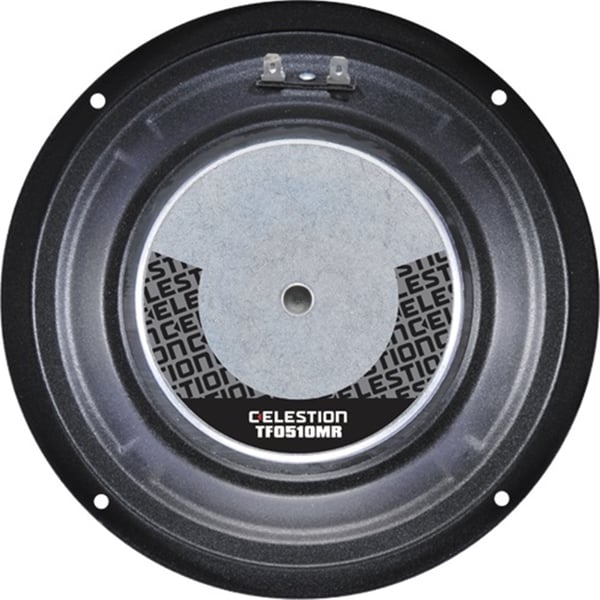

Celestion TF0510MR 30W 8ohm LF Ferrite
Paga in 3 rate da € 13,00 senza interessi con
Modello: 15300217
Notificami quando sarà disponibile
Inviami una notifica quando l'articolo tornerà disponibile
- 14 Giorni per il reso. Policy sulla restituzione
Specifiche
- Codice: 15300217
- Marchio: Celestion
- Modello: 15300217
- Peso: 1,705

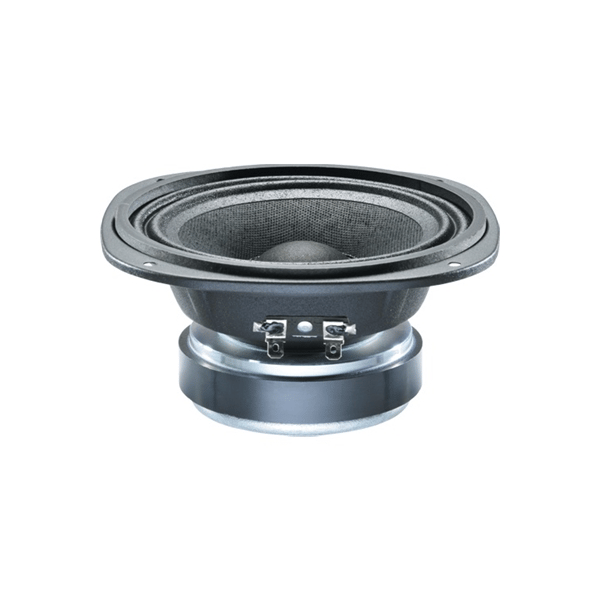

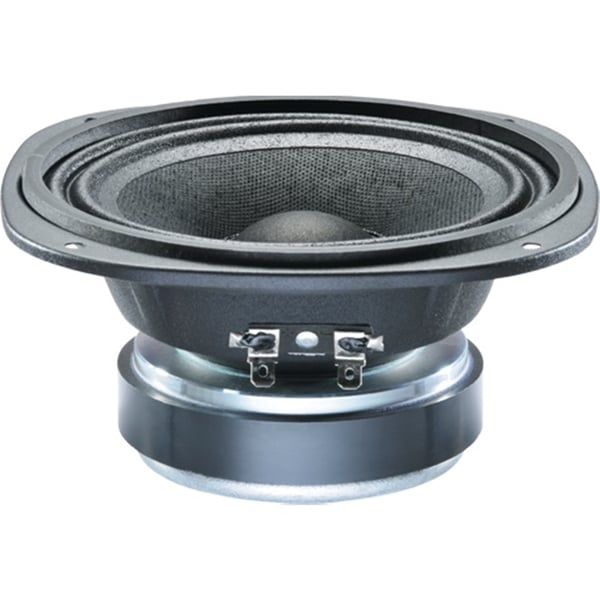

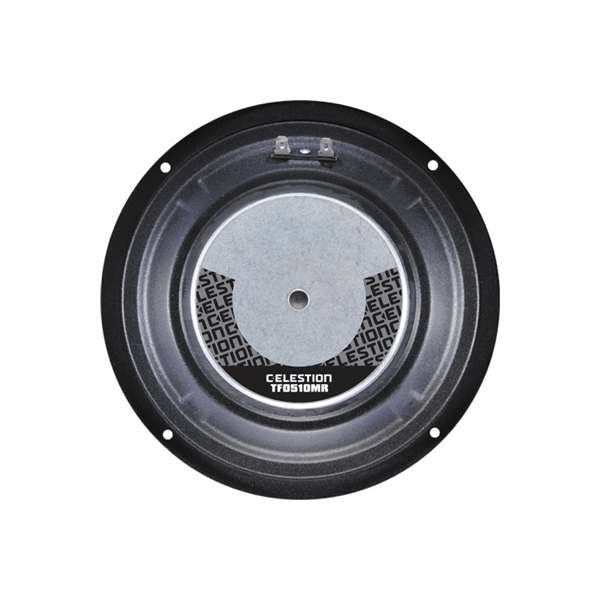

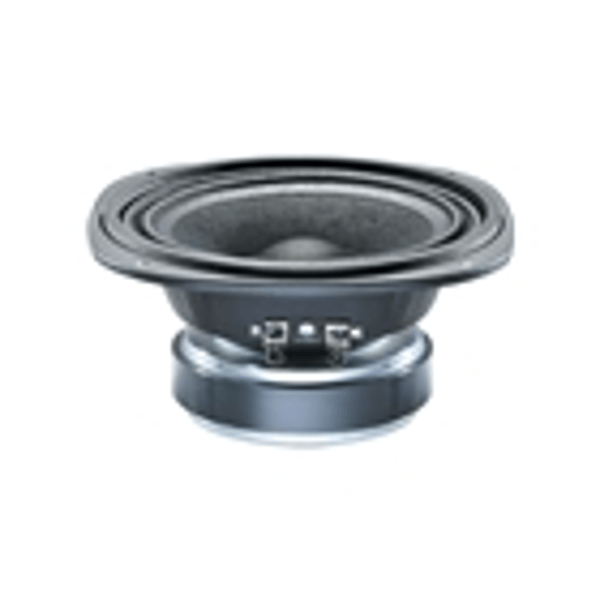

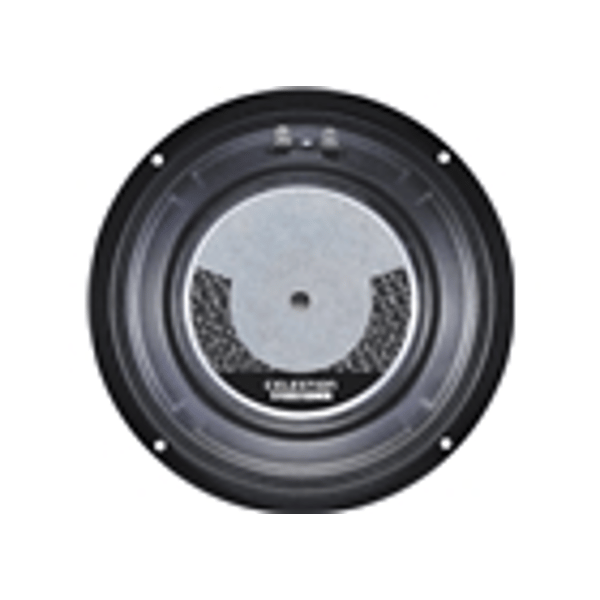

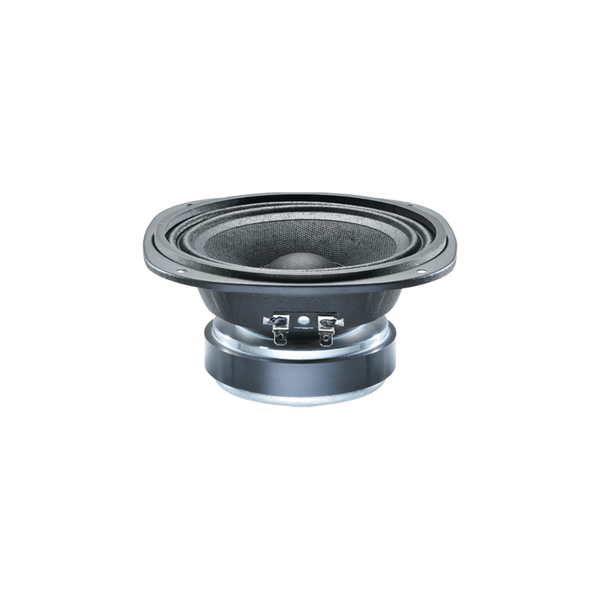

Altoparlante da 5" con chassis in acciaio stampato, magnete in ferrite, bobina da 1", potenza 30Watt, impedenza 8ohm
Caratteristiche
- Closed back midrange unit
Specifiche Generali
Nominal diameter: 127mm/5in
Power rating(1): 30Wrms
Continuous power rating(2): 60W
EIA power rating(3): 50W
Nominal impedance: 8ohm
Sensitivity(4): 93dB

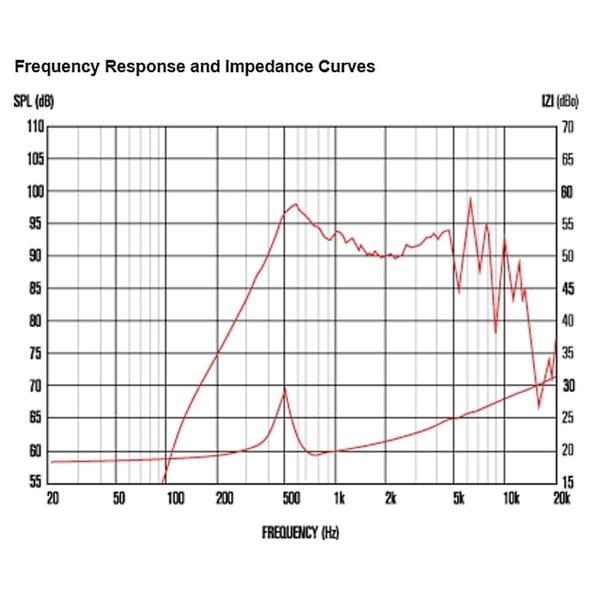

Frequency range: 400-8,000Hz
Voice coil diameter: 25mm/1in
Chassis type: Pressed steel
Magnet type: Ferrite
Magnet weight: 0.37kg/13oz
Coil material: Round copper
Former material: Polyimide
Cone material: Kevlar loaded paper
Surround material: Treated paper
Suspension: Single
Parametri di Thiele-Small(3)
Fs: 482Hz
Re: 7.87ohm
Le (at 1kHz): 0.2mH
Informazioni di Montaggio
Overall diameter: 136mm x 151mm/5.35in x 5.94in
Overall depth: 68mm/2.68in
Cut-out diameter: 117mm/4.61in
Mounting slot dimensions: Ø 4.5mm/0.18in
Number of mounting slots: 4
Mounting PCD range: 140mm/5.5in
Unit weight: 1.1kg/2.4lb
Note
(1)Tested for two hours using a continuous, band-limited pink noise signal as per AES standard.
Power calculated on minimum impedance. Loudspeaker tested in free air.
(2)Continuous Power Rating is defined as 3dB greater than the AES rating.
(3)Tested as per the EIA-426-A standard.
(4)Measured on axis at 1W, 1m in 2pi anechoic environment.
