Celestion CDX14-3030 75W 8ohm HF Ferrite
Paga in 3 rate da € 64,26 senza interessi con
Modello: 15300172
Notificami quando sarà disponibile
Inviami una notifica quando l'articolo tornerà disponibile
- 14 Giorni per il reso. Policy sulla restituzione
Specifiche
- Codice: 15300172
- Marchio: Celestion
- Modello: 15300172
- Peso: 1,705

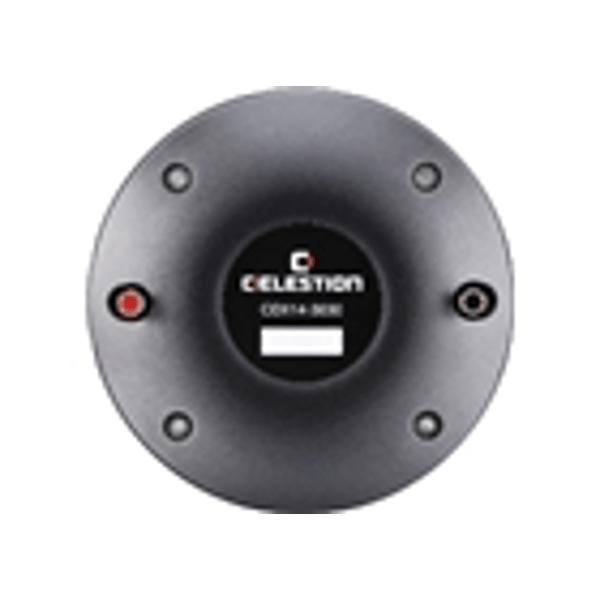

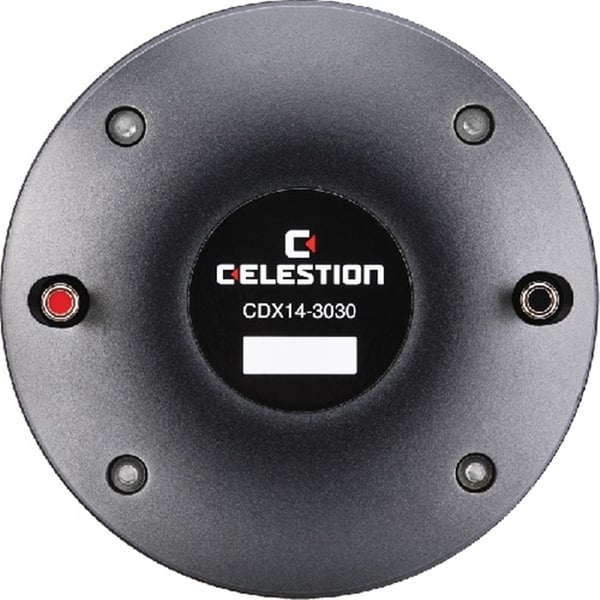

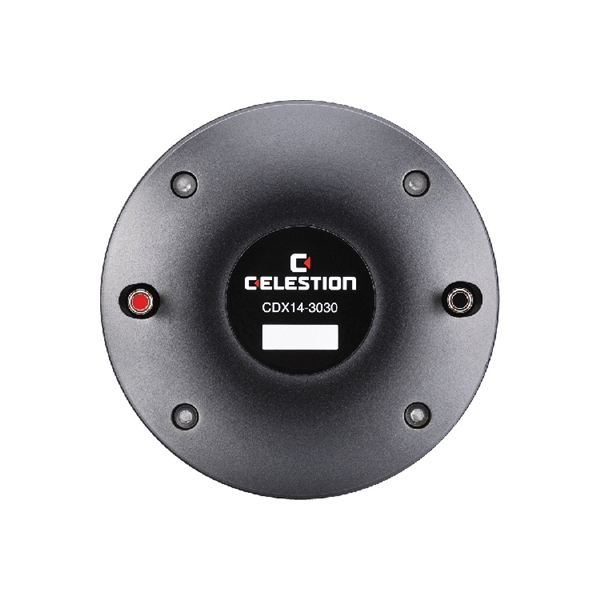

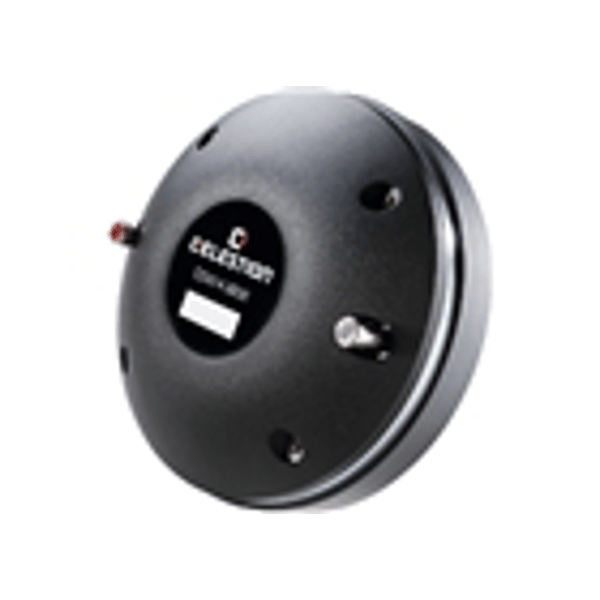

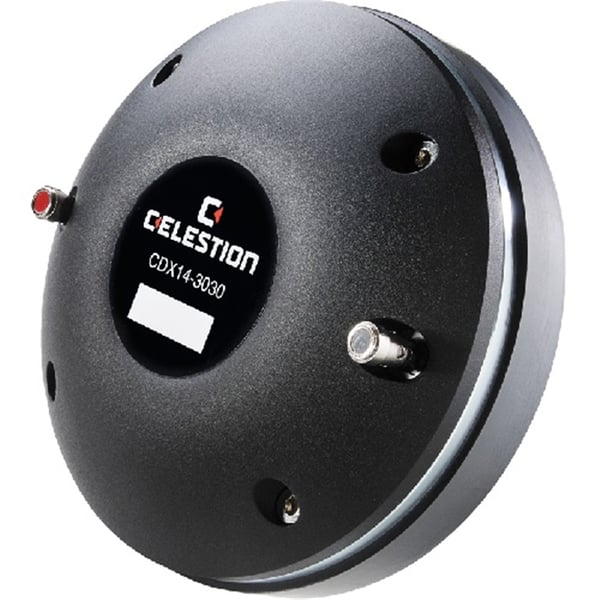

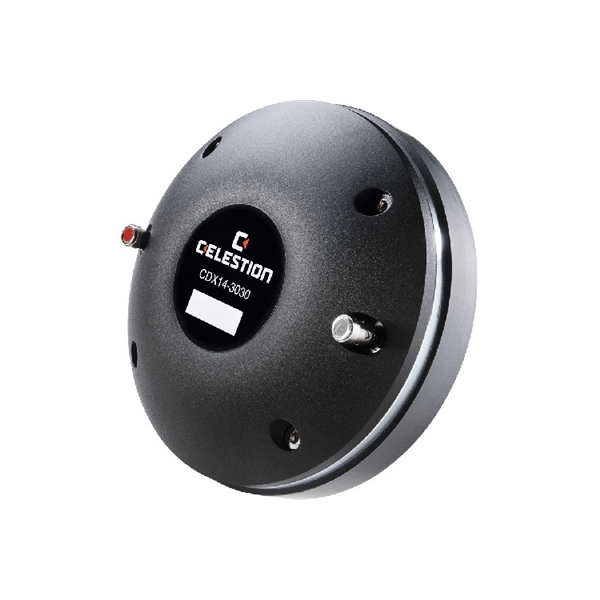

Driver a compressione con magnete in ferrite, uscita da 1.4", potenza 75Watt, impedenza 8ohm,
diaframma in titanio, fissaggio con viti (bolt).
Caratteristiche
- 1.4" exit, ferrite magnet, 3" voice coil compression driver provides 75Wrms (AES standard) power handling and 106.5dB sensitivity
- Next generation Sound Castle™ soft clamping assembly reduces diaphragm stress for decreased distortion and even greater reliability of performance
- One piece titanium diaphragm and surround
- Finite Element Analysis (FEA) used to optimise both magnet assembly and acoustic design
Specifiche Generali
Power rating(1): 75Wrms
Continuous power rating(2): 150W
Nominal impedance: 8ohm

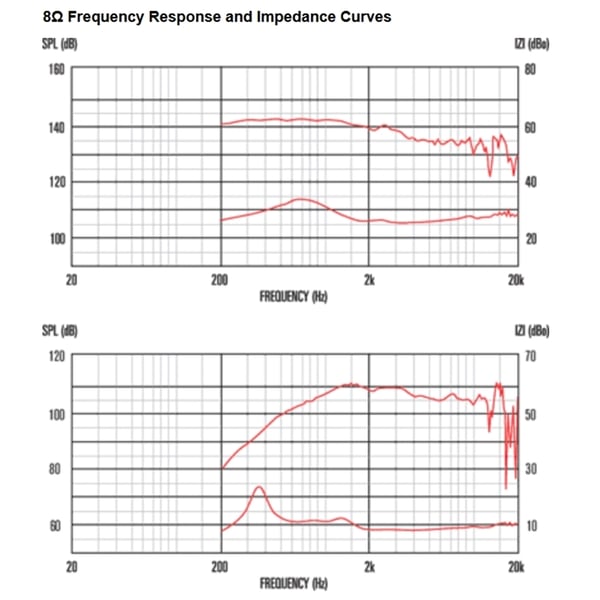

Frequency range: 500-18,000Hz
Sensitivity(3): 106.5dB
Recommended min. crossover (12dB/oct): 1000Hz
Voice coil diameter: 75mm/3in
Voice coil material: Edgewound copper clad aluminium
Magnet type: Ferrite
Diaphragm material: Titanium
Surround material: Titanium
Informazioni di Montaggio
Width: 180mm/7in
Depth: 68mm/2.7in
Weight: 4.88kg/10.7lb
Fitting: Flange (4 x M6 holes on a 102mm/4in PCD)
Throat exit: 35.6mm/1.4in
Note
(1)Tested for two hours on plane wave tube using a continuous, band-limited pink noise signal as per AES standard. Power calculated on minimum impedance.
(2)Continuous Power Handling is defined as 3dB greater than the AES rating.
(3)Measured on axis at 1W, 1m, using typical horn, in 2 anechoic environment.
