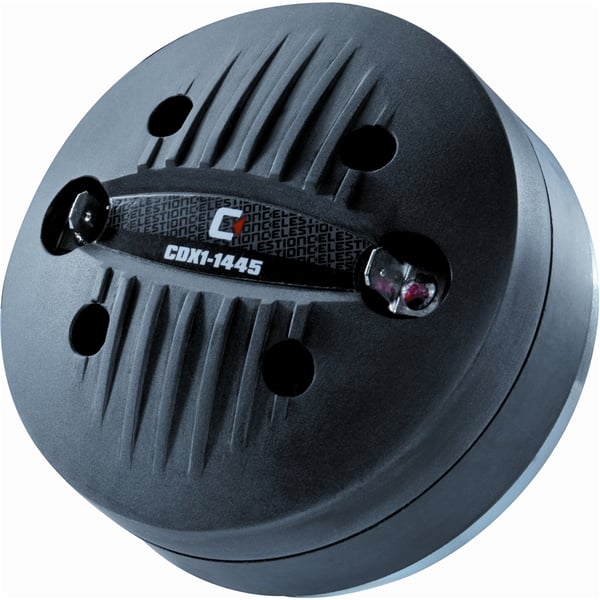

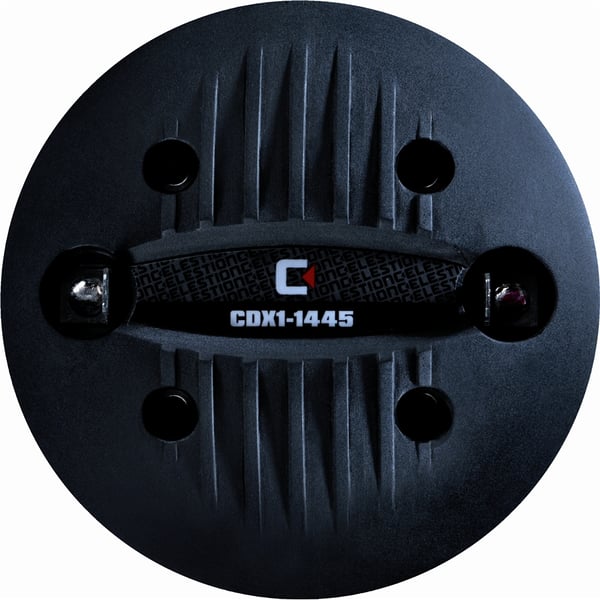

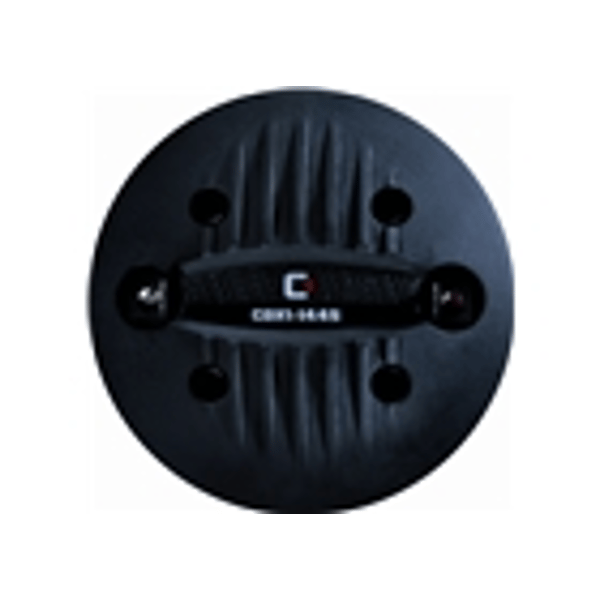

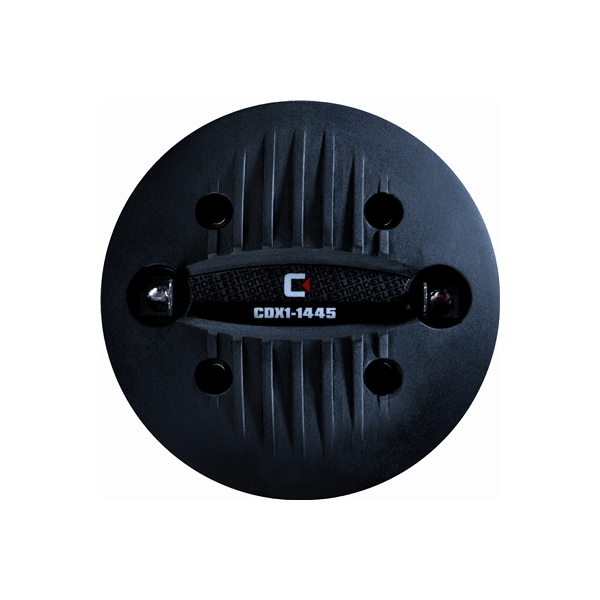

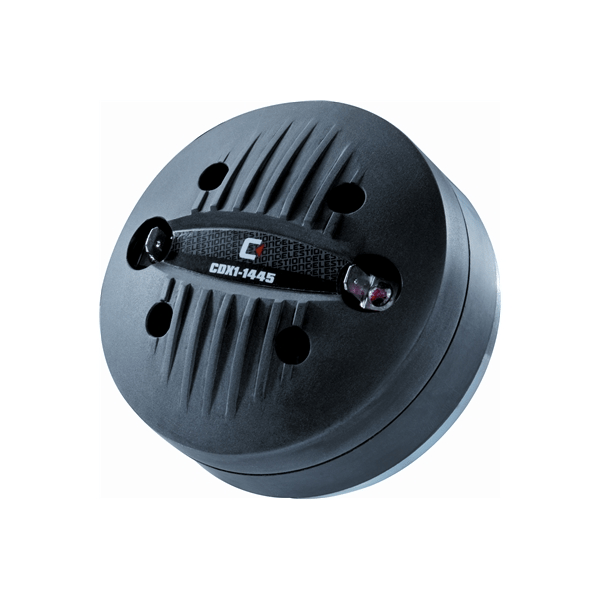

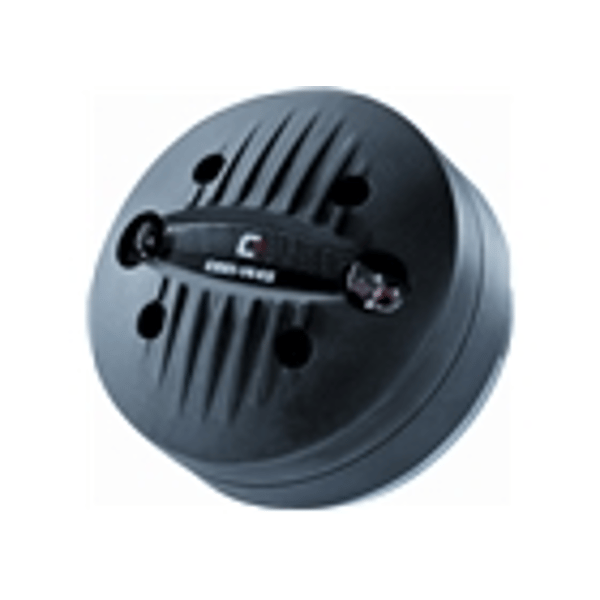

Celestion CDX1-1445 20W 16ohm HF Ferrite
Paga in 3 rate da € 19,67 senza interessi con
Modello: 15300002
Notificami quando sarà disponibile
Inviami una notifica quando l'articolo tornerà disponibile
- 14 Giorni per il reso. Policy sulla restituzione
Specifiche
- Codice: 15300002
- Marchio: Celestion
- Modello: 15300002
- Peso: 1,136
Driver a compressione con magnete in ferrite, uscita da 1", potenza 20Watt, impedenza 16ohm,
diaframma in PETP (polietilene tereftalato), fissaggio con viti (bolt).
Caratteristiche
- 1" exit lightweight and compact ferrite magnet compression driver with
- 1.4" copper clad aluminium voice coil
- 20Wrms power handling (AES standard) and 106dB sensitivity
- One piece PETP diaphragm and surround
- Finite Element Analysis (FEA) techniques used to optimise both magnetic and acoustic design
- Suitable for 2-way and 3-way systems
Specifiche Generali
Power rating(1): 20Wrms
Continuous power rating(2): 40W
Nominal impedance: 8/16ohm
Frequency range: 1500-20,000Hz
Sensitivity(3): 106dB
Recommended min. crossover (12dB/oct): 2200Hz
Voice coil diameter: 35mm/1.4in
Voice coil material: Copper clad aluminium
Magnet type: Ferrite
Diaphragm material: PETP film
Surround material: PETP film
Informazioni di Montaggio
Width: 90mm/3.54in
Depth: 46.5mm/1.83in
Weight: 1kg/2.2lb
Fitting: Flange (4 x M6 holes on 76mm/3in PCD)
Throat exit: 25mm/1in
Trombe Compatibili
H1-9040P, H1-7050 "No Bell"
Note
(1)Tested for two hours on plane wave tube using continuous band-limited pink noise as per AES standard. Power calculated on minimum impedance.
(2)Continuous Power Handling is defined as 3dB greater than the AES rating.
(3)Measured on axis at 1W/1m, using typical horn, in 2 anechoic environment.
