PROEL STAGE Cavo professionale DMX ad impedenza costante ad una coppia audio bilanciata twistata e cavo di potenza
€ 6,60 IVA inclusa 22.00%
Paga in 3 rate da € 2,20 senza interessi con
- Pronto in 2 giorni
- 14 Giorni per il reso. Policy sulla restituzione
Vista Rapida

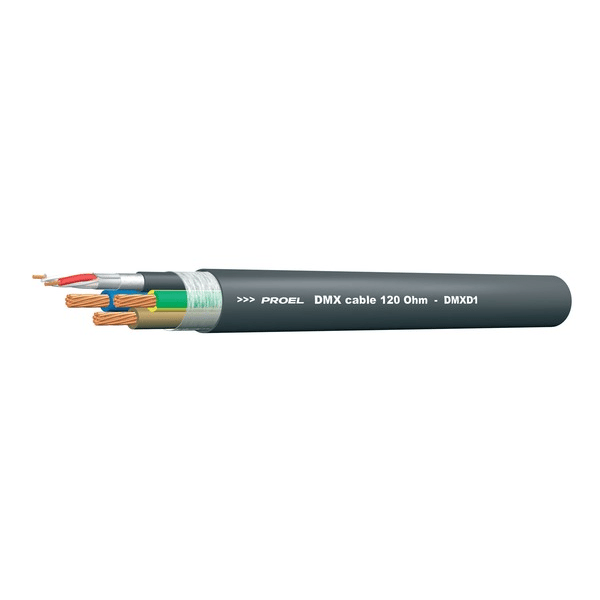

Cavo professionale DMX ad impedenza costante ad una coppia audio bilanciata twistata e cavo di potenza con guaina esterna a diametro ridotto in PVC fl essibile antifiamma. Sezione: Audio 2 x 0.25 mm2 - Power 3 x 1.50 mm2. Colore nero.
Specifiche
- Codice: DMXD1
- Categoria: Cavi dmx
- Marchio: Proel Stage
- EAN: 8032496173809
- Peso (Kg): 0.059
- Application fields: Standard DMX connections / Light/colour changer scanner connections
- Conductors: Bare copper:
- Audio: 24 AWG = 14 x 0.15 mm (0.25 mm2) - Complying with IEC 228 Class 5 regulations
- Power: 16 AWG = 3 x 1.5 mm (1.55 mm2)
- Insulation:
- Audio: PE Ø 1.80 mm red/natural
- Power: flame resistant PVC Ø 4.5 mm - Complying with IEC 332.1 regulations
- Shield:
- Conductors: Aluminium/Mylard foil 100% - Tinned copper braid 90%
- Cable: Non wovens
- Jacket:
- Audio conductors: flame resistant flexible PVC Ø 4.50 mm
- Cable: flame resistant flexible PVC Ø 9.80 mm - Complying with IEC 332.1 regulations
- Color: Black
- Electrical resistance: 85 Ohm/Km (conductor) @ 20°C / 17 Ohm/Km (shield) @ 20°C
- Electrical capacitance: 40 pF/m (conductor/conductor) @ 1 KHz / 71 pF/m (conductor/shield) @ 1 KHz
- Nominal impedance: 120 Ohm
- Operating temperature: -20°C / +80°C
- Working tension:
- Power: 300/500V
- < 50 V AC (Signal)
- < 75 V DC (Signal)
- Weight: 146 Kg/Km
- Minumum bending radius: 25 mm
- Packaging: 100 m wooden or wood fiber reel
