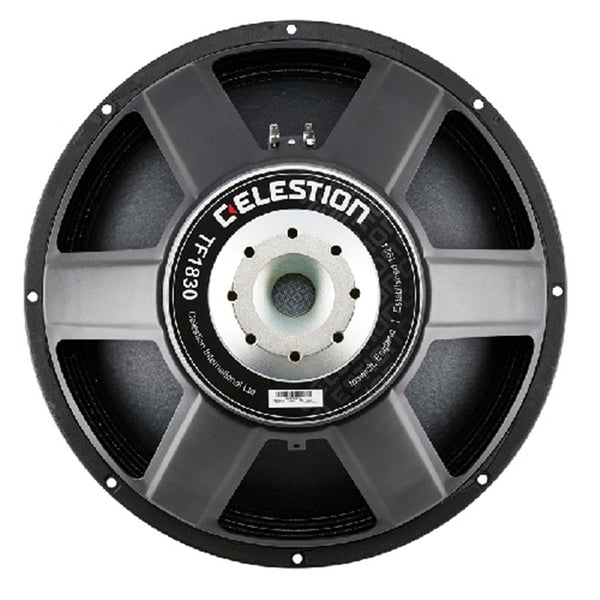

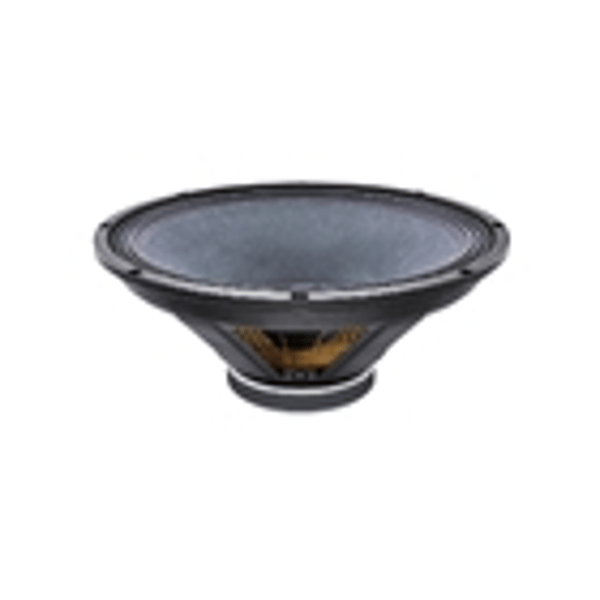

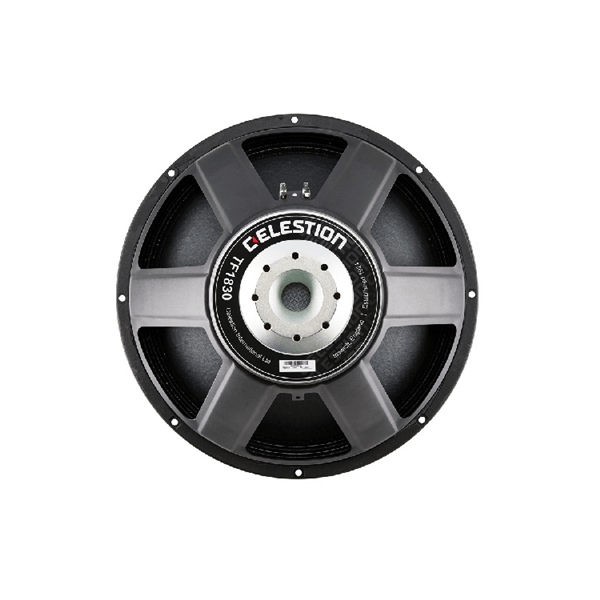

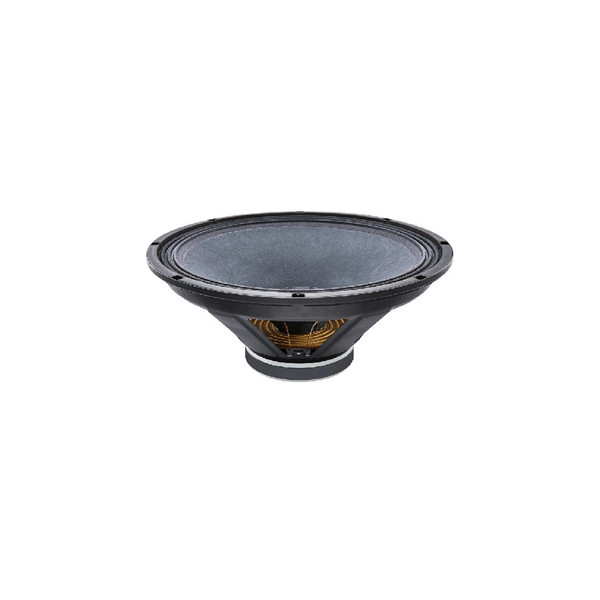

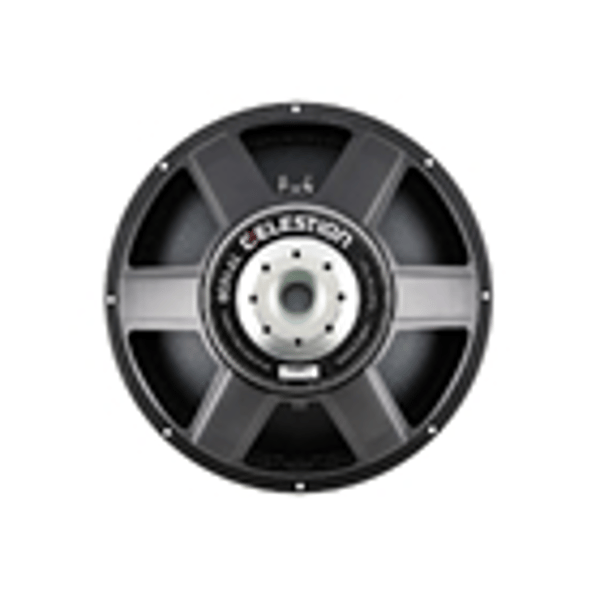

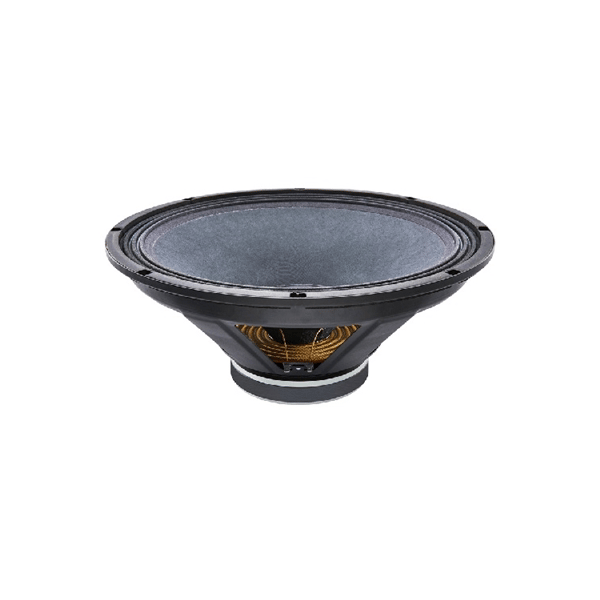

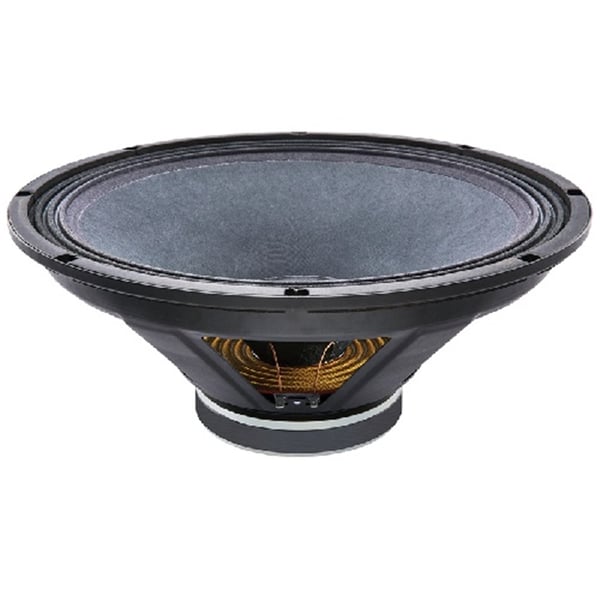

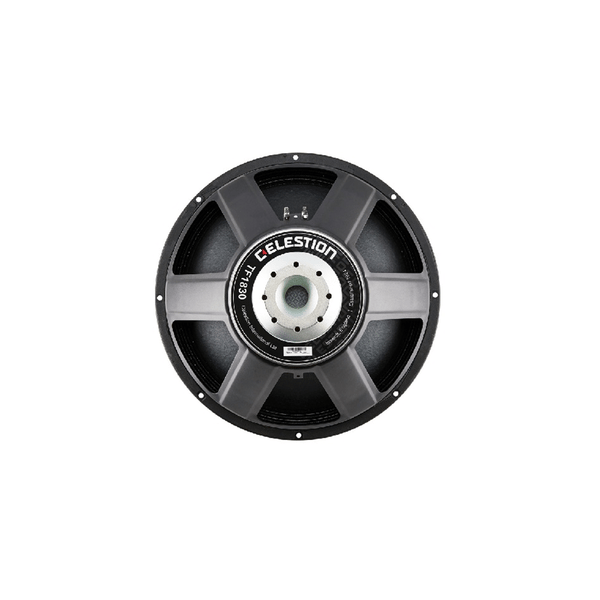

Celestion TF1830 500W 4ohm LF Ferrite

Celestion - TF1830 500W 4ohm - LF Pressed Steel Chassis Loudspeaker - Ferrite

Altoparlante da 18" con chassis in acciaio stampato, magnete in ferrite, bobina da 3", potenza 500Watt, impedenza 4ohm

Caratteristiche

- Balanced Airflow Venting provides enhanced cooling

- Multi-layer voice coil

- Compact, high flux, Dual Magnet Motor design

Specifiche Generali

Nominal diameter: 457mm/18in

Power rating(1): 500Wrms

Continuous power rating(2): 1000W

EIA power rating(3): 650W

Nominal impedance: 4ohm

Sensitivity(4): 96dB

Frequency range: 35-1,000Hz

Voice coil diameter: 75mm/3in

Chassis type: Pressed Steel

Magnet type: Ferrite

Magnet weight: 1.8kg/65oz

Coil material: Round copper

Former material: Glass fibre

Cone material: Glass loaded paper with weather resistant impregnation

Surround material: Cloth sealed

Suspension: Single

Xmax(5): 4.5mm/0.18in

Gap depth: 8mm/0.31in

Voice coil winding width: 17mm/0.67in

Parametri di Thiele-Small

D: 379.5mm/14.9in

Fs: 35.7Hz

Mms: 179.11g/6.32oz

Qms: 4.213

Qes: 0.434

Qts: 0.393

Re: 2.58ohm

Vas: 202.4l/7.15ft3

BI: 15.46Tm

Cms: 0.11mm/N

Rms: 9.63kg/s

Le (at 1kHz): 1.28mH

Informazioni di Montaggio

Overall diameter: 460mm/18.1in

Overall depth: 209mm/8.22in

Cut-out diameter: 421mm/16.57in

Mounting slot dimensions: Ø8.3mm/0.32in

Number of mounting slots: 8

Mounting PCD range: 443.4mm/17.46in

Unit weight: 7.5kg/16.5lb

Note

(1)Tested for two hours using a continuous, band-limited pink noise signal as per AES standard.

Power calculated on minimum impedance. Loudspeaker tested in free air.

(2)Continuous Power Rating is defined as 3dB greater than the AES rating.

(3)Tested as per the EIA-426-A standard.

(4)Measured on axis at 1W, 1m in 2pi anechoic environment.

(5)Xmax derived from: (voice coil winding width-gap depth)/2.

(6)Small signal parameters measured after unit subjected to pre-conditioning signal.
